Output power 20dBm Mobile Phone Range Extender Customized Dual Band

Product Categories
Shenzhen Atnj Communication Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

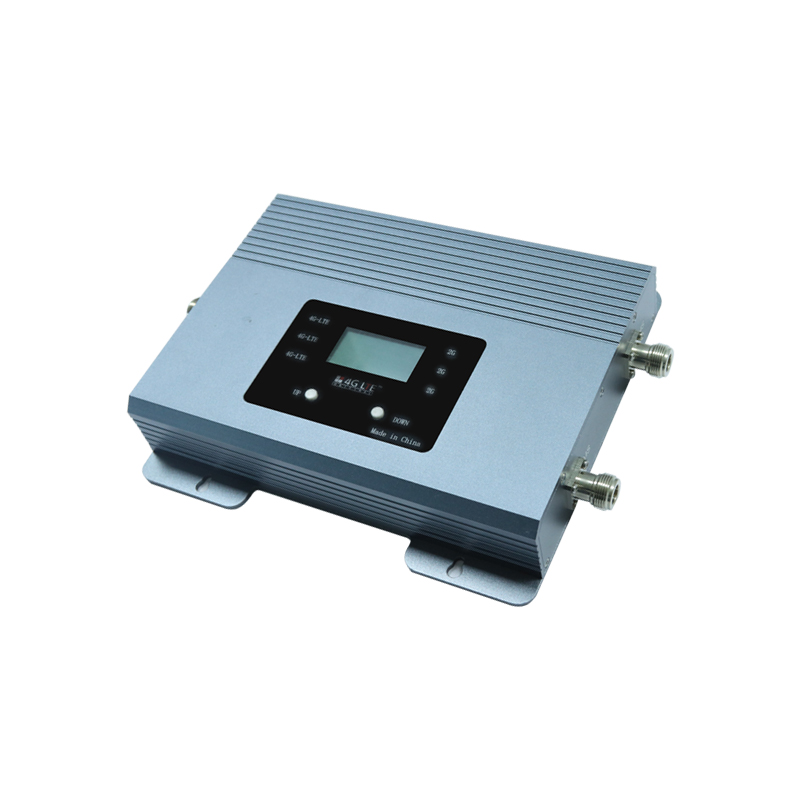

Output power 20dBm Mobile Phone Range Extender Customized Dual Band

  • 1
  • 2
  • 3

Brand Name : ATNJ

Model Number : A021-900/2100

Certification : CE,ROHS，CCC，TUV,BV， ISO

Place of Origin : China

MOQ : 5Pcs

Price : USD+86---110+kit

Payment Terms : T/T, Western Union,Paypal,Alibaba,Bank transfering.

Supply Ability : 1000+unit+per day.

Delivery Time : 3-5 work days

Packaging Details : Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)

Frequency Range : 900MHz 890-915MHz/935-960MHz,2100MHz:1920-1980MHz/2110-2170MHz

Device Gain : 70dB

Device Output power : 20dBm

Color : Grey and Customized

AGC Intelligent function : Done,31dB @ 1dB/ Step

ALC Intelligent function : Done

Power Supply : AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Products Type : Signal Repeater

Contact Now

Dual Band 900/2100MHz Mobile Phone Signal Booster Repeater Amplifier

Customized Dual Output 900+2100MHz mobile signal booster 2G 3G cellular amplifier

Product Feature:

1. Model No: AS-C .

2. Improve 2G Voice and 3G Internet .

3. Smart LCD Display. Show clear outdoor signal strength, work signal strength .

4. Coverage: cover about 300sqm without any barrier .

5. Full intelligent:Sleeping Mode,AGC&ALC Function. Can control gain automatically.Avoid base station interference .

6. CDMA 850MHz. [Band 5] (Frequency Band :Uplink:824-849MHz, Downlink:869-894MHz) .

7.This model can support at least 20 cell phone in the same time .

8. CE & RoHS certificate. 3 years Warranty .

9. Connector Type: SMA-female connector .

10. Easy to install with LCD screen intelligent guide .

Technical Specifications

Specifications Parameters
Frequency Range (Customers to Choose) Uplink 890-915MHz, 1920-1980MHz
Downlink 935-960MHz, 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth) 25MHz&60MHz
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm / 30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) N(Female)
Operating Temperature Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Dimensions 165*130*40 (mm)
Weight ≤ 0.8 kg(Net)
Alarm Monitoring System Alarm for uplink self-oscillation
Certification: ISO, RoHS, CE, CCC

Further detail pls click here for downloading the products specification:

900+2100MHz A021 Mobile Signal Repeater.docx.pdf

Output power 20dBm Mobile Phone Range Extender Customized Dual BandOutput power 20dBm Mobile Phone Range Extender Customized Dual Band

Output power 20dBm Mobile Phone Range Extender Customized Dual Band

We are manufacturer, and have our own factory.

FAQ:

1. Are you trading company or manufacturer ? Could I use our own logo and label? We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3: Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if there are any other questions.
